Air Power Series>1:144 die-cast display model>JU52>HA9010

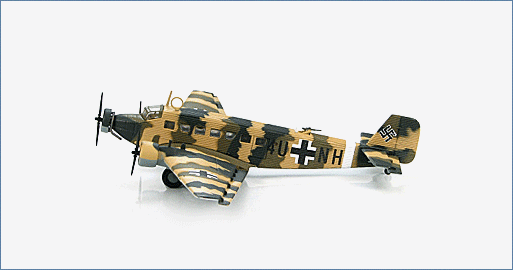

JU-52/3m g4e 4U + NH "Operation Mercure", Crete, May 1941
HA9010
General Background
The Ju-52 first flew in 1930 as a single engine civil aircraft. Before long it was given two more engines and designated Ju-52/3m (German - drei motoren - "three engines"). The 3-engine aircraft was originally designed as a 17 passenger airliner. The principal user was Lufthansa that flew in Europe, Asia and South America. In the mid 1930’s a military version was produced and the Ju-52 became one of the most reliable transport aircraft. The Ju-52 saw service with military and civilian air fleets well into the 1980s.
The Aircraft
The Italian Army was driven back when they attempted an attack on Greece in 1940. Yugoslavia had been an Axis ally but anti-German forces toppled the government in March 1941. So in April 1941 Hitler was forced to send troops and supplies so Germany could secure a southern flank for the coming invasion of the Soviet Union. Luftwaffe transports played a key role in the rapid deployment of German units to the Balkan region. After only 22 days Yugoslavia and Greece had fallen and the next German operation would be the taking of Crete. KGzbV - Kampfgeschwader zur besonderen Verwendung, or Bombardment Wing for special duties.
Specifications :
Role: Airliner, Transport Aircraft
Crew: 3 / 2 x pilots, radio operator
Payload: 17 passengers
Nicknames: German / Tante Ju ("Auntie Ju"), Allies / Iron Annie, Corrugated Coffin, Jupiter was BEA Airlines designation of war-reparation Ju 52/3m’s in 1947
Number Built by Junkers: 4,845
Performance:
Maximum speed: 143 kts 264 km/h
Initial climb rate: 787.4 ft/min 4.00 m/s
Service ceilinge: 16,732 ft 5,100 m
Range: 648 nm 1,200 km
Endurance: 7 hours +
Powerplant: 3 x BMW 132 A/3 9 cylinder radial air-cooled turbocharged (high- altitudes) engines with carburetors
Power rating (max.): 819 hp per engine
Maximum Total power rating: 2,456 hp
Dimensions:
Length: 62 ft 18.9 m
Height: 20 ft 6.1 m
Wingspan: 95.9 ft 29.25 m
Wing area: 1189.4 sq/ft 110.5 sq/m
Max take-off weight: 23,152 lbs 10,500 kg
Weight empty: 14,531 lbs 6,590 kg
