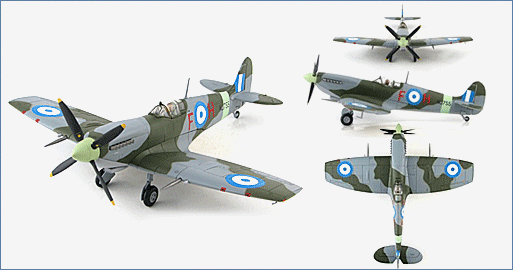

Spitfire Mk. IX MJ755 (restored), Hellenic Air Force, 2020
HA8322
General Background
The Mk. IX replaced the Mk. V in June 1942 and on September 12, 1942 a Mk. IX brought down a Ju-86R flying at 43,000 feet. Another major achievement of the Mk. IX took place on October 5, 1944 when 401 Squadron became the first allied aircraft to shoot down an Me-262 jet. Even with the arrival of the Griffon powered Mk. XIV the Mk. IX continued in service until the end of WWII. There were 5,665 Mk. IX Spitfires and its variants produced.
The Aircraft
Spitfire Mk. IX MJ755 was delivered to RAF No. 43 Squadron in August 1944. In 1947 approximately 120 Spitfires; including MJ755 were transferred to the Hellenic Air Force equipping three Squadrons. By 1954 all Spitfires were retired from service and eventually scrapped; all but MJ755 that was stored and eventually became the gate guard at Tatoi AB and then moved to the Hellenic Air Force Museum. It was decided to make the plane airworthy so in 2018 it was shipped to Biggin Hill for a total restoration.
Specifications :
Number built : 5,665 all Mk. IX variants
Crew : 1 X pilot
Dimensions :
Length: 31 ft. 3.5 in.
Wingspan:
Standard (F) 36 ft. 10 in.
Clipped (LF) 32 ft. 2 in.
Height: 11 ft. 9 in.
Wing Area: (F) 242 sq. ft. or (LF) 231 sq. ft.
Weight:
Empty: 5,610 lbs. (2,545 kg)
Maximum Takeoff: 7,500 lbs. (3,402 kg)
Performance:
Engine: 1 X V-12 Rolls-Royce Merlin 61 @ 1,515 hp or
1 X V-12 Rolls-Royce Merlin 63 @ 1,712 hp
Maximum Speed: 408 mph (657 kph) @ 25,000 ft.
Service Ceiling: 4,000 ft.
Range w/o drop tank: 434 miles (698 km)
Armament: 2 X Hispano 20mm cannons
plus either 4 X .303 machine guns or
2 X .50 machine guns
1,000 lbs of bombs (500 centerline, 250 each wing)
