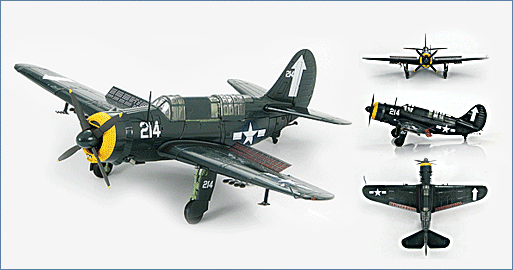

SB2C-4E "Helldiver" VB-84, USS Bunker Hill, Tokyo Raids, Feb 1945
HA2203
General Background
The SB2C was designed to replace the SBD Dauntless. When the Helldivers were first delivered they were so poorly manufactured that some broke in half on landing and wings fell apart in a dive. Some countries cancelled orders and the USAAF never used the 900 they received. Eventually after over 800 modifications and technical changes the Helldiver went on to become one of the most effective dive-bombers of WWII. Most people referred to the plane as “The Big Tail Beast” or just “The Beast”.
The Aircraft
On February 16 1945 as part of a 116 ship task force USS Bunker Hill was anchored 60 miles off shore from Japan and began launching its Helldivers and other aircraft against airfields and engine factories around Tokyo. Hopefully this would distract the enemy and make it impossible for Japan to send aircraft to repel the US Marine landing on Iwo Jima on February 19th. These strikes lasted seven days and destroyed 500 enemy aircraft as well as factories and several ships. The US lost 88 aircraft of which two were Helldivers from VB-84.
Specifications :
General data
Manufacturer: Curtiss-Wright
Crew: 2 X 1 pilot, 1 radio operator/gunner
Dimensions
Length: 36 ft 9 in (11.2 m)
Wingspan: 49 ft 9 in (15.2 m)
Height: 14 ft 9 in (4.5 m)
Wing area: 422 ft² (39.2 m²)
Weights
Empty: 10,114 lb (4,588 kg)
Loaded: 13,674 lb (6,202 kg)
Max takeoff: 16,800 lb (7,600 kg)
Performance
Powerplant: 1× Wright R-2600 Cyclone radial engine, 1,900 hp (1,400 kW)
Maximum speed: 294 mph (473 km/h)
Range: 1,200 miles (1,900 km)
Service ceiling: 25,000 ft (7,600 m)
Rate of climb: 1,750 ft/min (8.9 m/s)
Armament: 2 x .50 cal (20 mm) cannon in each wing
2 x 0.30 in (7.62 mm) machine guns in the rear cockpit
Internal bay - 2,000 lb (900 kg) of bombs or 1x Mark 13-2 torpedo
Hardpoints: 500 lb (225 kg) of bombs each wing
