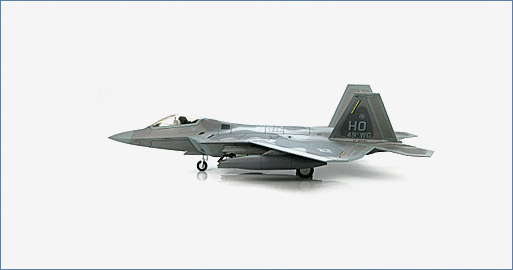

Air Power Series>1:72 die-cast display model>F-22>HA2808

General Background

The USAF developed a requirement for a new air superiority fighter to replace the F-15 Eagle. Two proposals were submitted with the Lockheed Martin F-22 Raptor being selected as the new Advanced Tactical Fighter (ATF). The aircraft is constructed using 39% titanium, 24% composite material, 16% aluminum and 1% thermoplastic by weight. All these components contribute to the F-22 being a light weight, extremely maneuverable, extremely fast aircraft that uses stealth technology. The F-22 is also capable of ground attack, electronic warfare and signals intelligence.

The Aircraft

Lockheed Martin F-22A Raptor c/n 05-4088 serial 05-088 was delivered to the USAF on February 23, 2007. In May 2007 the aircraft was assigned to 90th FS of the 3rd Wing based at Elmendorf AFB in Alaska wearing the tail code AK. On June 2, 2008 05-088 was re-assigned to the 7th FS 49th WG of the Air Combat Command based at Holloman AFB New Mexico wearing tail code HO. The base was named in honor of Col. George V. Holloman, a pioneer in guided missile research.

Specifications :

First flight:	September 7, 1997
Planned Production:	750 aircraft initial program objective
Altered plan in 1990:	648 aircraft
Altered plan in 1994:	442 aircraft
In 1997 Department of Defense report:	339 aircraft
In 2006 the Pentagon wanted -183 aircraft:	2008 approval for 4 additional aircraft bringing the total to 187
Number built as of August 2009:	145
Role:	Air superiority fighter
Crew:	(1) pilot
Performance
Engines:	(2) Pratt & Whitney F119-PW-100 engines producing 35,000 lbst of thrust
Speed:	Mach 1.8 (super cruise: Mach 1.5)
G Limit:	+9 G
Ceiling:	60,000 ft (18,290 m)
	The F-22 and other fighters can reach this altitude, but only the F-22 can perform tactical maneuvers at this level.
Dimensions
Length:	62.08 ft (18.90 m)
Height:	16.67 ft (5.08 m)
Wingspan:	44.5 ft (13.56 m)
Wing Area:	840 sq ft (78.04 sq m)
Horizontal Tail-span:	29 ft (8.84 m)
Weights
Empty Weight:	31,670 lb (14,365 kg)
Maximum Takeoff Weight:	60,000 lb (27,000 kg)
Armament:
Internal:	(1) 20mm Cannon
	(4) AIM-9 Sidewinders (side weapon bays)
	(4) AIM-120A AMRAAM (internal ventral bay)
	(6) AIM-120Cs (internal ventral bay)
	(6) GBU-32 JDAM PGMs (internal ventral bay)
	(8) GBU-39 Small Diameter Bombs (250lbs ea)
External:	(4) under-wing hard-points with a maximum of 5,000lbs (2,270kg) of mission-specific weaponry or fuel drop-tanks.
