Air Power Series>1:72 die-cast display model>F-86>HA4315

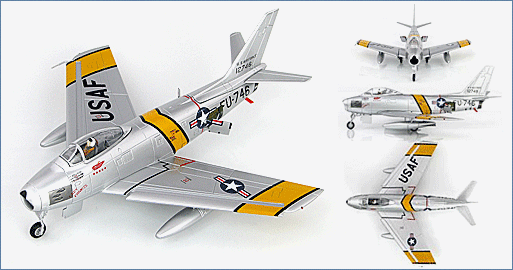

F-86E Sabre FU-746, flown by Col. Maj. William H. Westcott and Francis S. Gabreski, 25th FIS/51st FIW, Oct 1951
HA4315
General Background
The North American F-86 Sabre was manufactured from 1949 – 1956 and was America's first swept-wing fighter. As well as being built in the U.S. variants were built in Canada and Australia bringing the total of all variants manufactured to 9,860 units. During the Korean War the Sabre arrived to take on the other swept-wing aircraft of the conflict, the MiG-15 Fagot. The Americans claim they shot down 792 MiGs while only losing 78 Sabres, a 10:1 victory ratio which is greatly disputed.
The Aircraft
Col. Francis Gabreski, commander of the 25th FS/51st FIW and was assigned North American F-86E 51-2740 named “Gabby”. Occasionally pilots flew whichever aircraft was available and in October 1951 he was flying F-86E 51-2746 FU-746 “Lady Frances/Michigan Center” when he shot down one of the 6.5 MiG-15s he accumulated during his tour. FU-746 was the aircraft assigned to Major William Westcott who scored several of his 5 victories in FU-746. On November 21, 1952 51-2746 flown by 2nd Lt P.D. Blakeley was shot down but pilot was rescued.
Specifications :
Crew: 1
Dimensions
Length: 37 ft 1 ins (11.4 m)
Wingspan: 37 ft 0 ins (11.3 m)
Height: 14 ft 1 ins (4.5 m)
Weights:
Empty: 11,125 lb (5,046 kg)
Loaded: 15,198 lb (6,894 kg)
Maximum Take-off: 18,152 lb (8,234 kg)
Powerplant: 1 – General Electric J47-GE-27 turbojet
Thrust: 5,910 lbf (maximum @7,950 rpm for 5 minutes) 26.3 kN)
Fuel: JP-4
Internal: 437 US gallons (1,650 l)
Drop Tanks: 2 x 200 US gallons (760 l)
Maximum Speed: 687 mph (1,106 km/h) @ sea level and combat weight of 14,212 lb (6,447 kg)
Range: 1,525 miles (2,454 km)
Service Ceiling: 49,600 ft @ combat weight (15,100 km)
ROC: 9,000 ft/min @ sea level (45.72 m/s)
Armament:
Guns: 6 x 0.50 in (12.7 mm) M2 Browning machine guns w/1,602 rounds
Rockets: various rocket launchers, example 2 x Matra rocket pods w/18 SNEB (French manufacturer -
Societe Nouvelle des Etablissements Edgar Brandt) 68 mm air-to-ground rockets per pod
