Air Power Series>1:72 die-cast display model>Su-35>HA5703

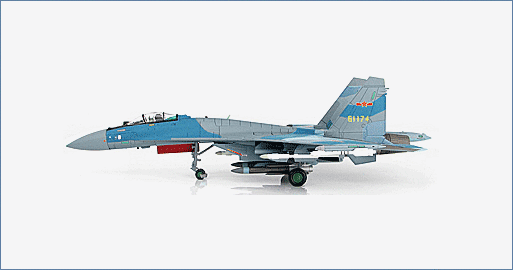

Su-35 Flanker E 61174, Chinese PLAAF
HA5703
General Background
The Sukhoi Su-35S Flanker E is a highly modified and improved derivative of the Su-27. About 20 years later a heavily modified member of the Flanker family was produced and given the title of Su-35S Flanker E. Considered by many to be the most capable fourth generation fighter in the sky and equipped with many fifth generation technologies. This probably will be the last of the Flanker family when the fifth generation Russian aircraft arrive.
The Aircraft
Four Su-35 Flanker E’s from the Komsomolsk-on-Amur Aircraft Production Association (KnAAPO) plant in Russia arrived at the PLAAF Cangzhou-Cangxian Flight Test and Training Center on Christmas Day 2016. The FTTC is responsible for developing flying procedures, combat techniques and training programs for new aircraft. The Su-35s eventually will be based at Suixi AB with the 6th Brigade, former 6th Air Regiment, 2nd Division and with the PLAAF Su-35 capability of airborne refuelling they should be able to provide long-range fighter-escort for the Xian H-6K bombers around the South China Sea.
Specifications :
Country of origin: Russia
Manufacturer: Sukhoi
Role: Multi-Role Fighter
Crew: 1 Pilot
Dimensions
Length: 21.9 m (72.9 ft)
Wingspan: 15.3 m (50.2 ft, with Wingtip Pods)
Height: 5.90 m (19.4 ft)
Weight:
Empty: 18,400 kg (40,570 lb)
Loaded Weight: 25,300 kg (56,660 lb) With Half Fuel Load
Maximum Takeoff: 34,500 kg (76,060 lb)
Performance
Power Plant: 2 × Saturn 117S (AL-41F1S) Afterburning Turbofan with 3D Thrust Vectoring Nozzle
Dry Thrust: 8,800 kgf (86.3 kN, 19,400 lbf) Each
Afterburner Thrust: 14,500 kgf (142 kN, 31,900 lbf) Each
Fuel Capacity: 11,500 kg (25,400 lb) Internally
Maximum speed: @ Altitude - Mach 2.25 (2,780 km/h, 1,726 mph)
@ Sea Level - Mach 1.15 (1,400 km/h, 870 mph)
Ferry Range: 4,500 km (2,430 nmi) With 2 External Fuel Tanks
Service Ceiling : 18,000 m (59,100 ft)
Range: @ Altitude - 3,600 km (1,940 nmi)
@ Sea Level - 1,580 km (850 nmi)
Maximum G-Load: 9+ G
Rate of Climb: 280+ m/s (55,000+ ft/min)
Armament:
Gun: 1 × 30 mm GSh-301 Internal Cannon With 150 Rounds
Hardpoints: 12
2 x Wingtip Rails
10 x Wing and Fuselage Points
The 12 Points Can Carry: Maximum of 8,000 kg (17,630 lb) Of Ordnance In Varying Combinations Of Rockets
S-25L Laser-guided Rocket
S-25 Unguided Rocket
B-8 Unguided S-8 Rocket Pods
B-13 Unguided S-13 Rocket Pods
Missiles: Vympel R-73E/M
Vympel R-74M
Vympel R-27R/ER/T/ET
Vympel R-77
Vympel R-37M
Kh-29T/L
Kh-31P/A
Kh-59ME
Bombs: KAB-500L Laser-guided Bomb
KAB-1500L Laser-guided Bomb
FAB-250 250-kg (550 lb) Unguided Bombs
FAB-500 500-kg (1,100 lb) Unguided Bombs
Other - Buddy Refueling Pod
Avionics: Irbis-E Passive Phased Array Radar
OLS-35 Infra-red Search and Track System
L265 Khibiny-M Electronic Warfare Pod
